PT. Duta Wijaya Elektrindo Engineering

OUR PRODUCTS

All Switchboard that produced by PT DUTA WIJAYA ELEKTRINDO ENGINEERING refers to International Standard IEC-61439 for Type Tested Switchboard and IEC-601439 for Non Type Tested Switchboard.

Type Tested and Non Type Tested Switchboard
LVMDB (Low Voltage Main Distribution Board)
Capacitor Bank Switchgear
Generator Control Panel
Panel MCC (Motor Control Center)
Sub Distribution Panel
Lightning Panel

STANDARD PRODUCT

Standard Characteristics of our Products

Standard Characteristics of our Enclosure

FLOW OF PROCESS

STEP OF PROCESS

  1. Shop drawing and approval drawing
  2. Procurement of materials and components
  3. Delivery scheduling
  1. Metal sheet cutting
  2. Hole punching using CNC machine
  3. Bending process
  4. Welding process
  5. Finishing process
  6. Painting the panel using powder coating paint
  1. Box adjustment before fitting the components and updeck
  2. Busbar setting
  3. Installation of the components
  4. Power cable and control cable installation
  5. Additional accessories installation if any
  1. Checklist all components
  2. System simulation On-Off Circuit Breaker
  3. Control system simulation
  4. Dielectric test and megger test
  1. Packing of the products
  2. Delivering the products to customer

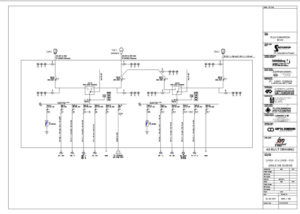

SHOP DRAWING

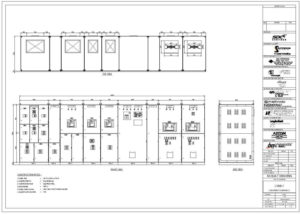

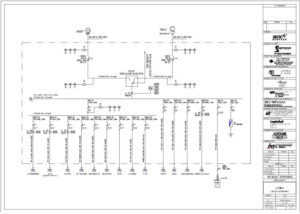

SHOP DRAWING TYPE TEST

Project of BIJB - Kertajati Majalengka

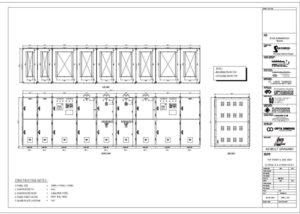

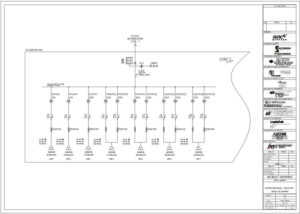

SHOP DRAWING FORM 3B NON TYPE TEST

Project of Sopo Del Office Tower

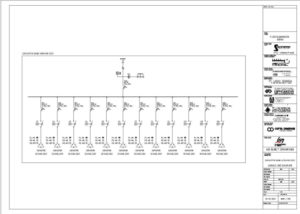

SHOP DRAWING FORM 3B NON TYPE TEST

Project of Kimia Farma

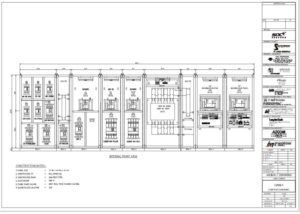

SHOP DRAWING FORM 3

Project of Mall Summarecon Digital Center

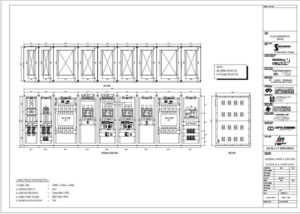

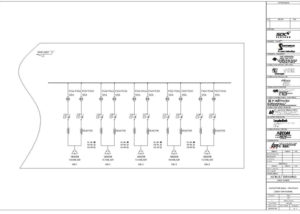

SHOP DRAWING FORM 2

Project of Plaza Summarecon Bekasi

FACTORY PRODUCTION FACILITES

NO FACILITES
1 Mesin CNC Turret Punch
2 Mesin Hydraulic Press Brake
3 Mesin Hydraulic Press Brake 125 Ton
4 Mesin Hydraulic Shear Merk SMS
5 Mesin hydraulic cutting kapasitas 6 mm
6 Mesin potong au 160 cm automatic
7 Mesin diesel Yanmar 18 PK
8 Mesin diesel kapasitas 60 kVA
9 Mesin genset mitsubishi 60 kW
10 Mesin press kabel skun hydraulic
11 Mesin tekuk tembaga hydraulic
12 Mesin pon untuk plat merk PAGODA
13 Mesin pon untuk tembaga manual
14 Mesin bor duduk besar merk GENERAL
15 Mesin bor duduk kecil merk WEST LAKE
16 Mesin bor tangan merk MAKITA
17 Mesin kompressor merk SWAN
18 Pemadam kebakaran merk PEACOCK 23 kg
19 Pemadam kebakaran merk PEACOCK 11 kg
20 Trafo las merk THUNDERBOLT 225 A
21 Meger digital merk MATSUSHITA
22 Mesin las YANMAR TS 155 F
23 Paint shop powder coating
24 Mesin gurinda
25 Multi meter digital
26 Analyzer - C80 CAT III 800V
27 Clamp ampere
28 Tool set / Safety Tool Kit
29 Crane / Katrol Merk HS Kapasitas 1 Ton
30 Safety Gloves High Voltage
31 Safety Belt High Voltage
32 Mesin Las SMARTMIG T25 merk CEA
33 Mesin Las THERMAMIG 250S merk THERMAWELD
34 Mesin Las ESAB THF 225 Mesin Las ESAB THF 250
35 Safety Screw
